"Innovatively designed and precisely engineered pump to provide you the High pumping
capacities and Higher vacuum levels."

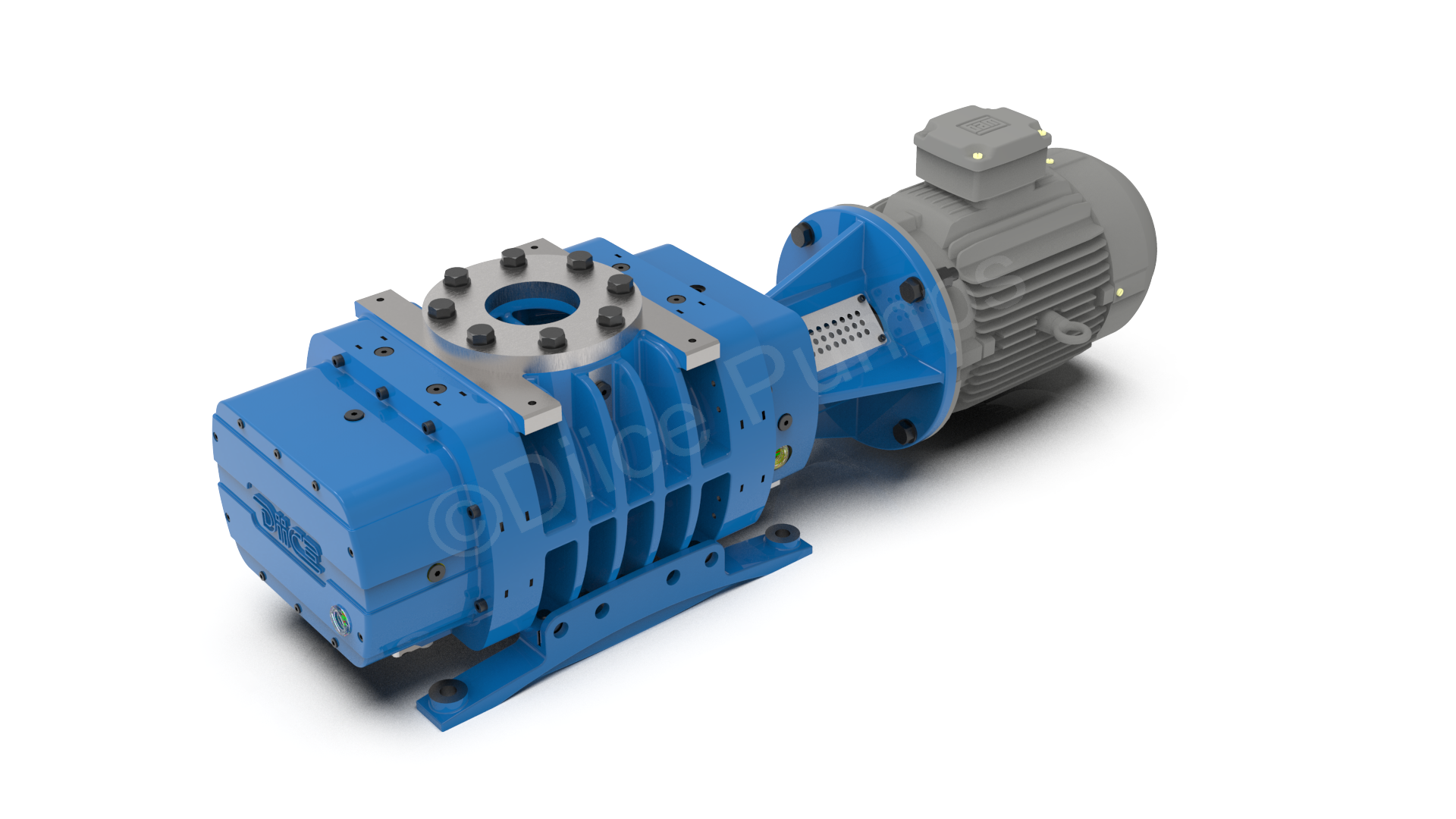

ASTV boosters, the root type Positive displacement vacuum pumps, provide you the top notch performance in every
application field with the combination of backup pump.
With high pumping speed range from 150 m3/hr to 10000m3/hr, oil cooling and various sealing options, ASTV boosters
are suitable for a wide range of applications.
ASTV boosters own features of Stable Operation, Low Noise, Low Vibration and High Ultimate Pressure.
Application Of Thin Coats
Evaporation
Heat Treatment
Ionic Nitrating
Metallization
Vacuum Distillation
Vacuum Dryer
Vacuum Impregnation

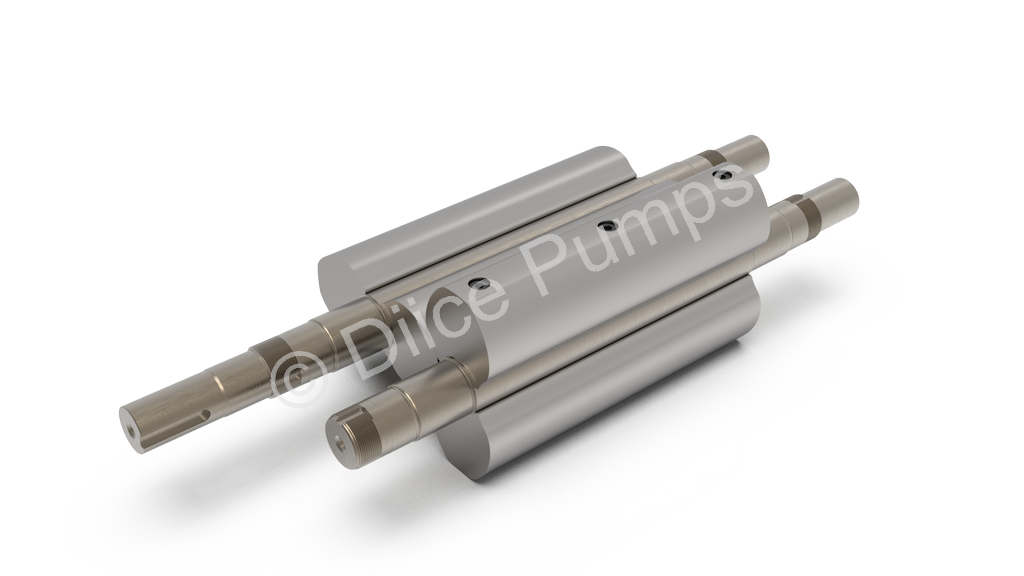

Advanced Rotor Technology for low power consumption, less vibration and noise.
Rotor are perfectly geometry symmetrical and dynamic balanced to the grade of turbines.
Advanced seal mechanism make these pumps less vulnerable to leakages of process medium.
Long life antifriction bearings and thick shaft design allow the pump to run over 3000RPM with an ease.
Oil coolers to work through high temperature applications.
Flexible mounting allows vertical and horizontal flow.
Compact Design for less installation space.
Robust build for higher compression ratios.
Helical ground gears for longer life and quiet operations.
Unique impeller design for high volumetric efficiency.
MOC stainless steel and various coating options for harsh process applications.
Magnetic coupling to hermetically seal the pump from environment.
